Switch Array 2D Pattern Generator

Description:

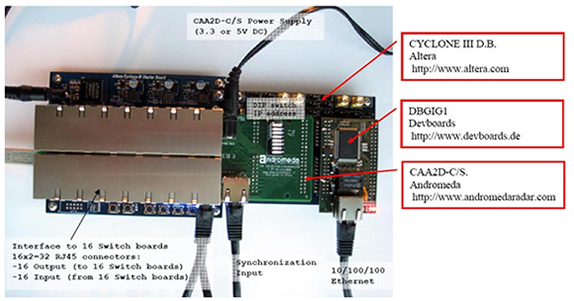

This board interfaces a bi-dimensional array of switches (or LED) to a FPGA through an Altera Santa Cruz slot. The board can be interconnected in tree structure to extend the 2D patter size as wide as required. The board can work up to 100 MHz.


Features:
  • Pattern generation speed: 100 Mega Pattern per second
  • Pattern size: up to 16x1024 diodes
  • Possibility of interconnection in tree architecture to extend the pattern size
  • Internal, External and PC synchronization
  • Size 18 by 8 cm
2d_pattern_generator
