|Switch Array Pattern Generator

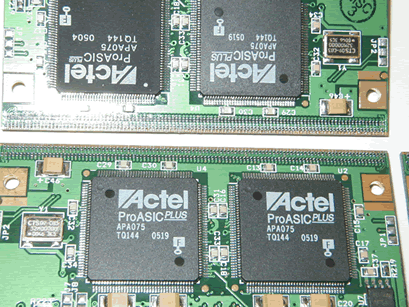

This board embedding 4 Actel FPGAs and 1 Microprocessor is devoted to generate ultra fast 1-D Switch Array patterns.
The board can be interconnected in daisy chain to extend the patter length as long as required.
The board can also be stacked in order to implement a 2-D Switch Array pattern generator based on a look up table or real time implemented algorithm.
- Pattern generation speed: 33 Mega Pattern per second
- Pattern length: 216 bit
- Possibility of interconnection in daisy chain to extend the pattern length
- Internal, External and Manual synchronization
- PC-USB interface and Windows software application
- Size 10 by 5 cm
- Pitch: 8 mils.
