23-24 GHz Aperture Array Antenna
Features:
  • 8 x 8 array of apertures supplied by strip-line
  • Matched in air (dielectric constant 1)
  • 50 Ohm, ROS<1.8 over 22.8-24.2 GHz
  • SMA connector

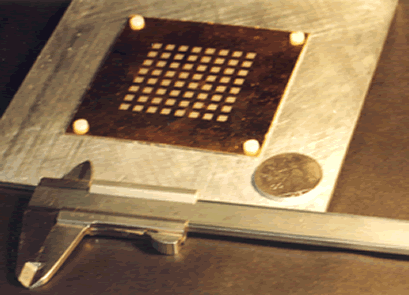

 23-24 GHz Aperture Array Antenna
